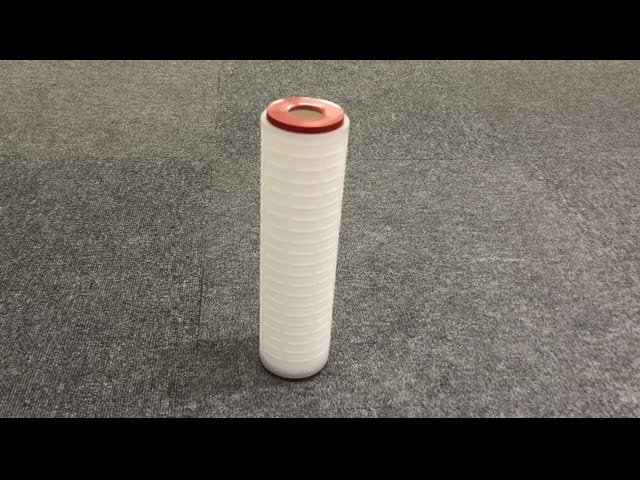

PP Filter Cartridge 2.7" Diameter 10"/20"/30"/40" Length 1micron 5micron PP Material
General Description
PLZ Series Pleated Filter Cartridge is constructed of superfine pp(polypropylene) and woven or mesh support materials, providing micron rating from 0.1um to 60um. Has high and stable filtration efficiency, can be used for various demanding filtering environment.
Its out cage can be divided into two types: general frame and integral frame. The integral frame out cage, has big filtration area, long service life, high strength, dimensional stability, small leakage risk, etc.
Specifications
| Item | Technical Parameters |
| Filter medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside diameter | 2.7" (68.5mm) |
| Length | 10", 20", 30", 40" |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ |
Applications:
* General purpose: RO Prefiltration, all kinds process water purification;
* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating *solution
* Food and Beverage: Alcohol, Beverage, Pure water.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
1. Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
2. Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.
5. Water treatment: commercial water treatment, desalination
