Big Flow Rate 20''/40''/60'' 5 micron PP/Glass fiber Pleated Filter For Reverse Osmosis Prefiltration
PHFL High Flow Pleated Filter series high flow filter cartridge is made of diameter 6"(152mm), single open end, without inner core, pleated type with inside to outside flow direction. All connection use thermal welding. Large diameter, big filtration area provide high flow rate, highly efficient particle filtration in RO pre-filtration system. Widely used in seawater desalination and power plant condensate polishing water RO pre-filtration.
Pleated Filter Performance Specifications
Dimensions(nominal)
| OD | 6'' (152mm) |
| Length | 20"(508mm), 40"(1016mm), 60"(1524mm) |
Material of Construction:
| Model | Filter Media | Support/Drainage | End Caps | Seals Material |
| PP | Pleated depth | Polypropylene | Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton
|
| PP | Melt blown | / | Glass Fiber Reinforced Polypropylene |
Filter Performance:
| Micron | 1μm, 5μm, 10μm, 15μm , 20μm, 40μm, 70μm |
| Maximum operating temperature: | 82℃ |
| Maximum operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 40": 70m3/h |
| 60": 110m3/h | |
| Filtration direction | Inside to outside |
Products Details
Pleated Filter Application:
1.Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
2.Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.
5. Water treatment: Drinking water, commercial water treatment, desalination.

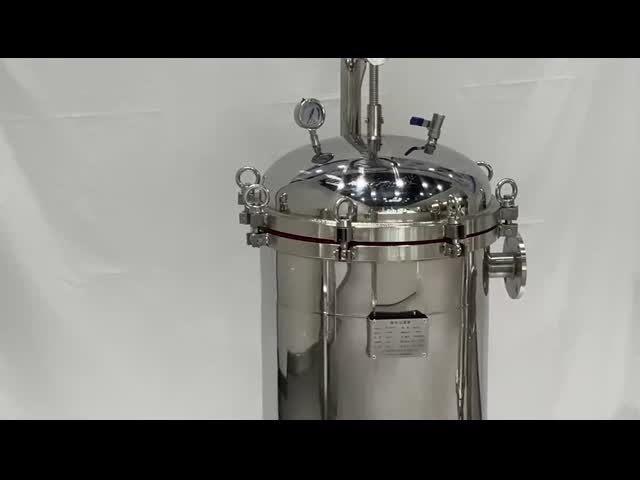

Operating Demonstration for Pleated Filter
It easy to operating, all you need to do just to put the filter in the strainer.
Features and Benefits:
* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination catched;
* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* FREE sample.

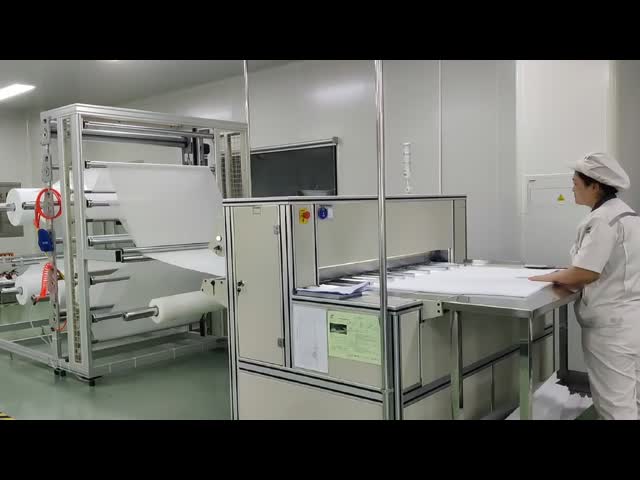

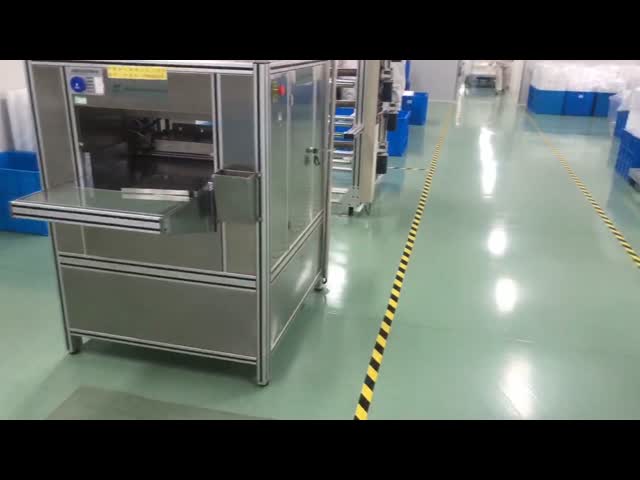

Production process:
Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

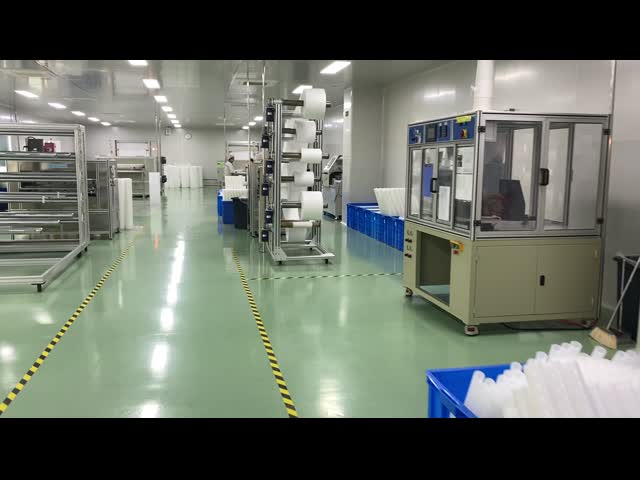

Clean Room:
In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.
Pullner laboratory:
It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.
Global Customers
Customers Feedback
Pullner Exhibitions:
We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
